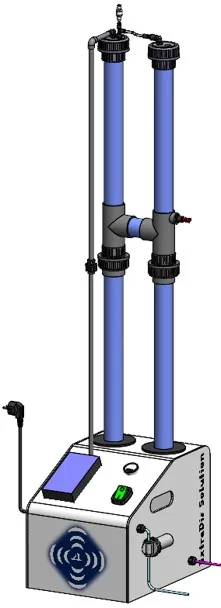

ExtraDis Solution
The solution to maintain gas-enriched liquids

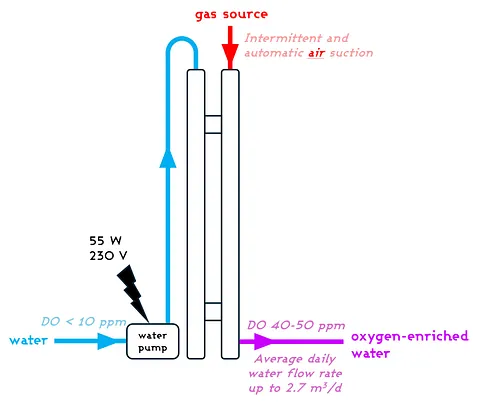

ExtraDis Solution is a patented system aiming at diffusing supersaturated liquid streams and covers various applications and industrial needs, including:
- Groundwater remediation and pollution treatment
- Hydroponics (to maintain optimal oxygen level to boost growth performance of plants)
- Aquaculture and Irrigation
- Bioreactors
- Diffusion of dissolved air, oxygen, ozone or any other gas
Instantaneous diffusion of any type of gas at unusually high concentrations
(5 times higher than natural levels).

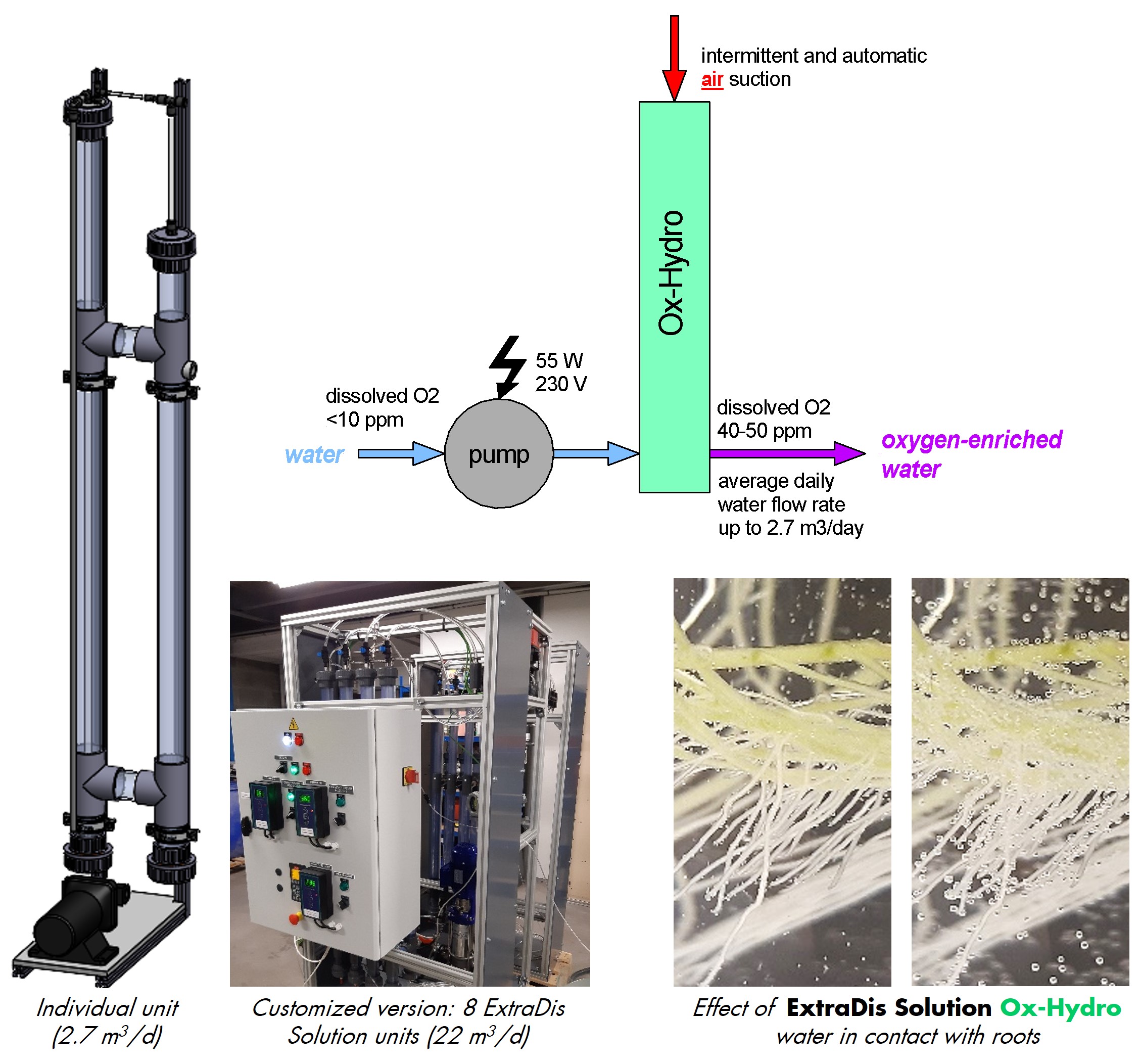

Up to 2.7 m3 of daily produced enriched water (per unit)
Very low energy consumption: 1 kWh per day
No bubbling = No stripping = No induced degradation of nutritive solution
Several possible integrations: in-line or recirculation loop
Modular and customizable solution on demand
For technical information or to receive a formal quote, contact us at info@ylec-diffusion.com
Air suction : Dissolved Oxygen (DO) concentration > 50 mg/l
Oxygen suction from O2 concentrator: DO > 250 ppm
Ozone suction from ozonator: O3 concentration up to 300 ppm

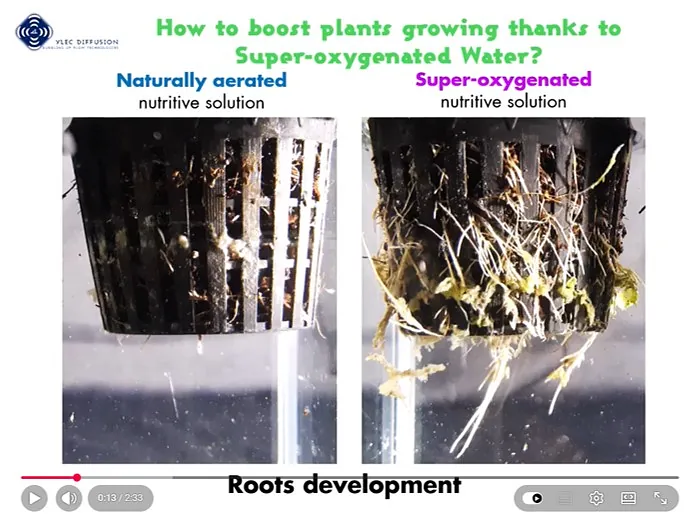

How to boost plants growing thanks to Super-Oxygenated water?

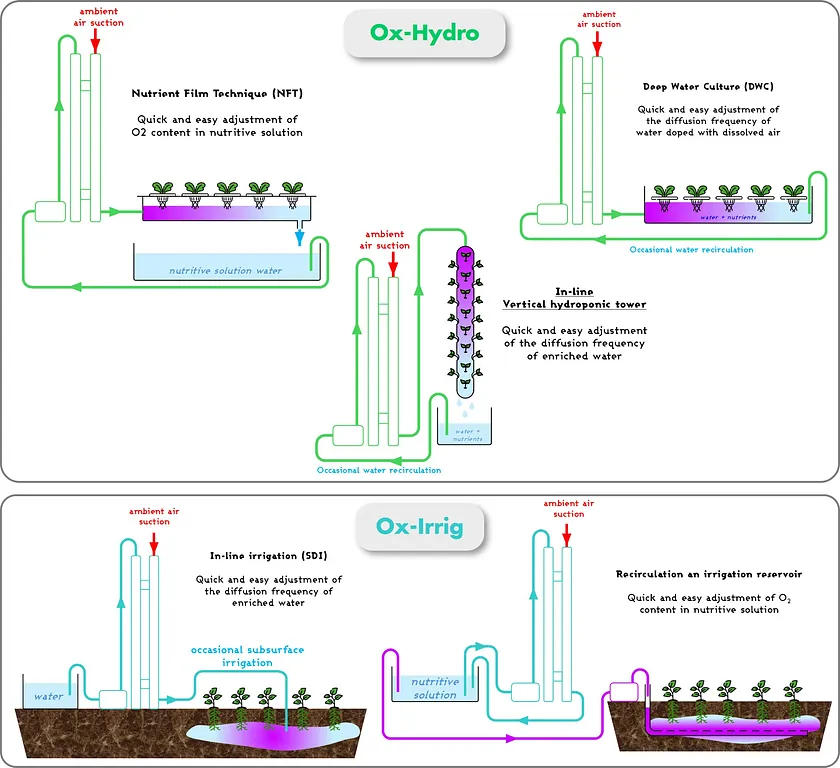

Two available versions:

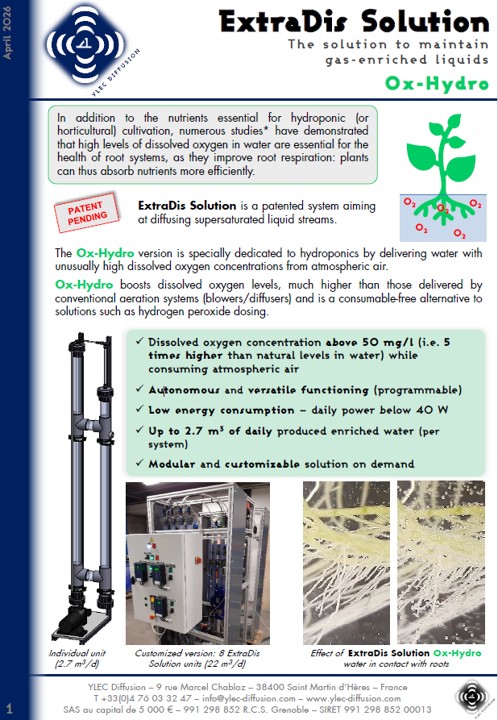

- Ox-Hydro - version specially dedicated to hydroponics. Oxygen from ambient air is instaneously dissolved at unusually high concentrations.
- Ox-Irrig - version specially dedicated to subsurface irrigation. Oxygen from ambient air is instaneously dissolved at unusually high concentrations.
Ask for brochures:
contact us at info@ylec-diffusion.com

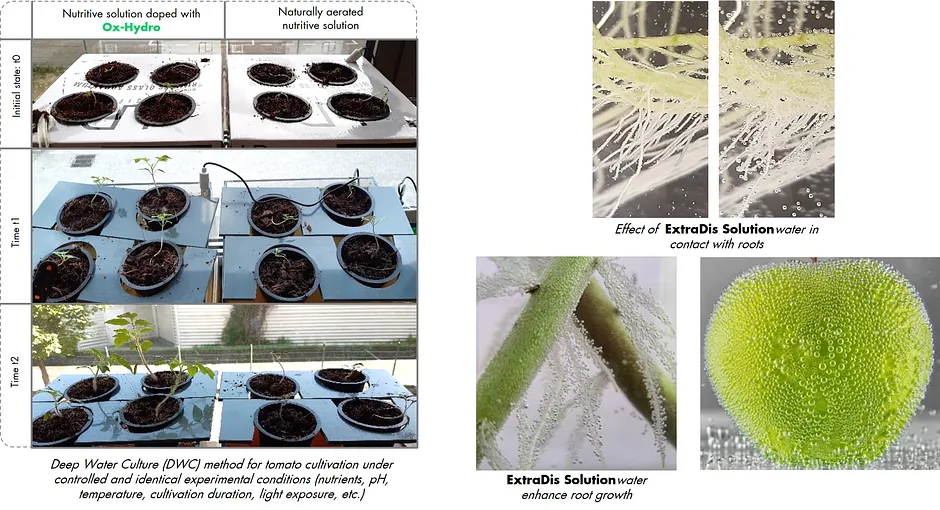

The benefits of O2 enriched water in hydroponics and horticulture:
- Agricultural Technology Faculty, University of Gadjah Mada (Indonesia) / Institut Teknologi Sepuluh November Surabaya (Indonesia) / Ehime University (Japan): Effect of high consentrated dissolved oxygen on the plant growth in a deep hydroponic culture under a low temperature
- Department of Horticulture, University of Georgia (USA): Boosting Hydroponic Production of Kale and Arugula by Managing Dissolved Oxygen
- College of Agriculture, Ehime University (Japan): Oxygen Enrichment in Deep Hydroponic Culture Improves Growth of Spinach
- Greenhouse and Processing Crops Research Centre, Pacific Agrifood Research Centre (Canada), Agriculture and Agri-Food Canda, Laval University (Canada), Ontario Ministry of Agriculture (Canada): Effects of Oxygen Super-Saturated Nutrient Solutions on Greenhouse Tomato
- Department of Environmental Resources, Prefectural University of Kumamoto (Japan), Department of Environmental and Symbiotic Sciences, Graduate School of Prefectural University of Kumamoto (Japan): A New Technique to Realize a Drastic Acceleration of Crop Growth in the DFT Hydroponic Cultivation with Hyper-oxygenated Nutrient Solution
- Plant Sciences Group, School of Biological and Environmental Sciences, Central Queensland University (Australia): Oxygation of rhizosphere with subsurface aerated irrigation water improves lint yield and performance of cotton on saline heavy clay soil
- Plant Sciences Group, School of Biological and Environmental Sciences, Central Queensland University (Australia):
- Plant Science Department and Center for Irrigation Technology, California State University (USA): Aeration in Subsurface Drip Irrigation: Academic and Commercial Review of Eight Years of Consistent Crop Yield Increase and Water Use Efficiency
- Department of Agriculture, Forestry and Fisheries (DAFF) (Australia) / School of Medical and Applied Science (SMAS), Central Queensland University (Australia): Benefits of oxygation of subsurface drip-irrigation water for cotton in a Vertosol
