CIMYLEC, DIACAP and COMBI: In-Pipe Microbubbles Generation
In addition to CARMIN microbubbles generator, we developed in-line microbubbles generators:
- CIMYLEC
- DIACAP
- COMBI

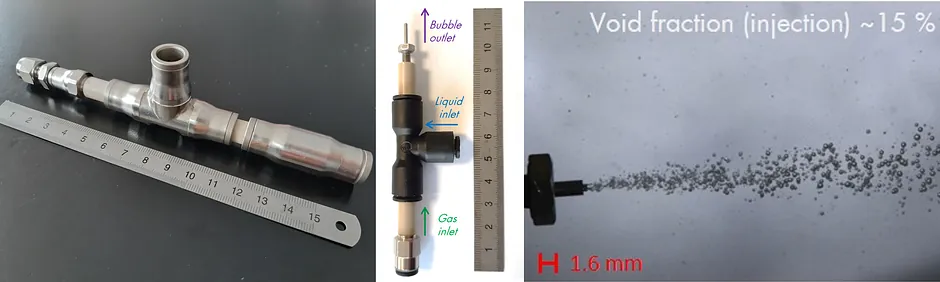

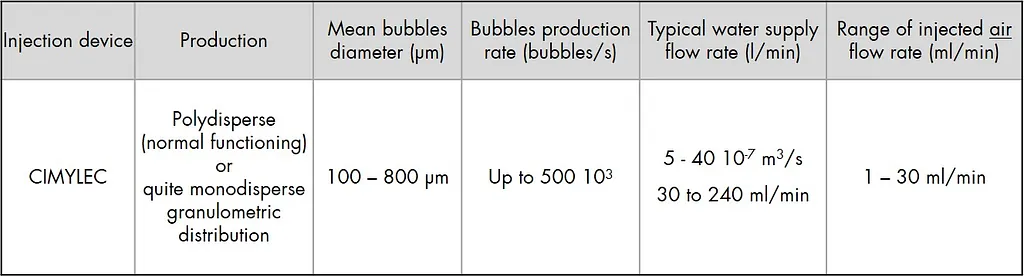

CIMYLEC:
The CIMYLEC device generates a "conical" plume of microbubbles induced by the turbulent fragmentation of a controlled gas flow by a high velocity liquid flow. Size of CIMYLEC allows an easy implementation, in a pipe or in-line.
Additional equipment to operate CIMYLEC:
- Water in-line filter
- Water pump
- Complet liquid supply line
- Complete gas supply line

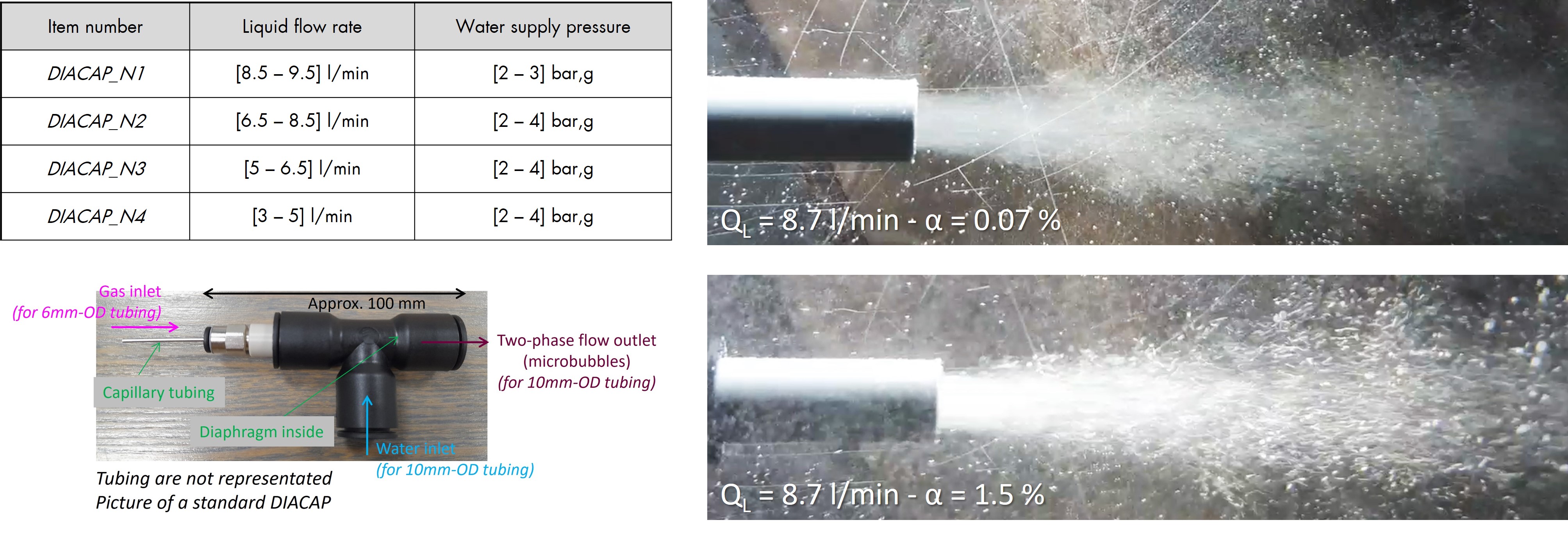

DIACAP:
Additional equipment to operate DIACAP:
- Water in-line filter
- Complete gas supply line
DIACAP is an in-line bubbles generator which generates microbubles from 100 to 400 µm.
Easy to connect to an existing set-up, and can also be directly connected to tap water.

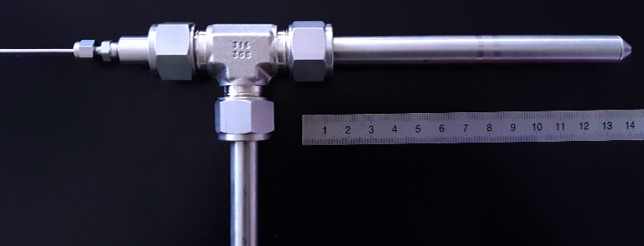

COMBI: COaxial MicroBubbles Injector
The COMBI device generates microbubbles from 70 to 170 µm.
